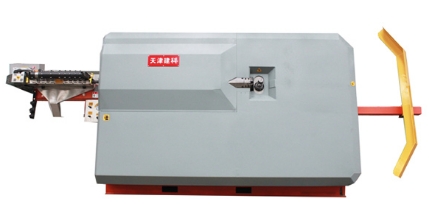

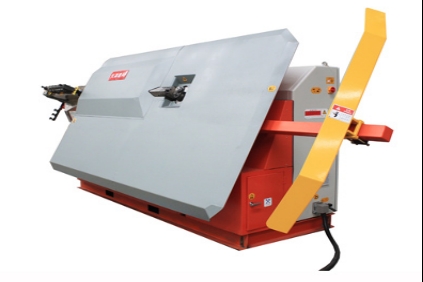

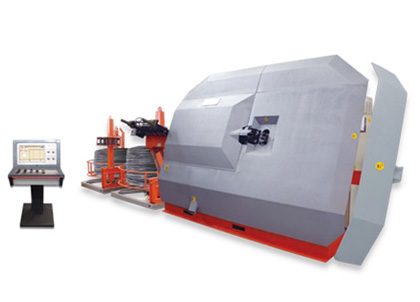

Stirrup Bender WG16B

Features of Stirrup Bender WG16B

	Working angle can be rotated ensures a larger processing range, the max length of stirrup up to 2450mm;
It has automatic wire feeding system, shorten feeding time to 5 seconds, saved lots of time ;
	Straightening memory straight roll is being used, more convenient replacement of wire changing;
Fixed cutter can be used on both sides to improve the service life; cutting knife is designed with four available sides, service life increased by 4 times, greatly reducing costs.
	Driven by full-closed-loop control servo motor which has high-precision, ensures the accuracy of length of ± 1mm, angle accuracy of ± 1 °;

More Detail Stirrup Bender WG16B

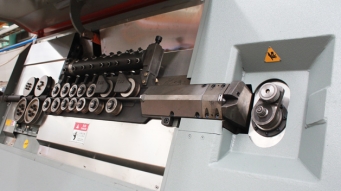

Stirrup Bender WG16B (steel wire bending machine) has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted, is integrated with 4 pulling rollers that eliminate the torsion, which is driven by servomotor, thus ensuring a perfect straightening accuracy.

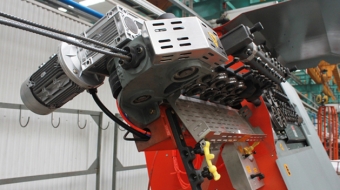

The bending and cutting unit of Stirrup Bender WG16B(steel wire bending machine), driven by servomotor, is equipped with turning and retractile bending pins. After receiving a signal from the computer, the cutting unit starts and cut in the twinkling guaranteed the tolerance of the stirrup.
For this CNC wire bending machine, many electric and pneumatic parts are imported from Japan and Germany, such as PLC, servomotor and reducer.
A CNC wire bending machine available to the most 30 bends; 500 different stirrups parameter can be stored in the computer memory.
The Stirrup Bender WG16B(steel bar bending machine) needs no pause and stop while processing stirrups of any shapes and adjusting bending angle.
With self-diagnosis, there are two standards exit, through which the electric encoder can be joined.

Technical Data of Stirrup Bender WG16B
