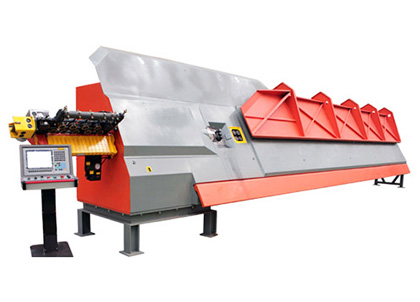

Stirrup Bender WG16F

Features of Stirrup Bender WG16F

	This CNC intelligent processing machine is workable with a variety of stirrups and long plate reinforced, which is also multi-functional stirrup bending machine, changing plate reinforcement and stirrups function can be automatically switched within 2 seconds, which without any manual adjustment;
Telescopic two-tier access to institutions, reliable, low noise; Large structural design ensures processing with large range of wires, workable with the width of the bar hook up to 1 m and the maximum length bar up to 12m bar; the largest stirrup side length up to 2350mm;
	With a reverse correction mechanism to ensure that the finished product flatness of the bar; Four-wheel servo-driven loopback mechanism designed to ensure the accuracy of returning of ± 1mm;
Machine has disc bending mechanism which avoids the stirrups collision and ensures the product pass rate of 100%;

More Detail Stirrup Bender WG16F

Stirrup Bender WG16F has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted, is integrated with 4 pulling rollers that eliminate the torsion, which is driven by servomotor, thus ensuring a perfect straightening accuracy.

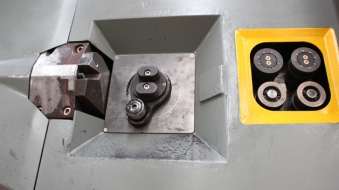

The bending and cutting unit of Stirrup Bender WG16F, driven by servomotor, is equipped with turning and retractile bending pins. After receiving a signal from the computer, the cutting unit starts and cut in the twinkling guaranteed the tolerance of the stirrup.
For this wire bender CNC machine, many electric and pneumatic parts are imported from Japan and Germany, such as PLC, servomotor and reducer.
A CNC wire bending machine available to the most 30 bends; 500 different stirrups parameter can be stored in the computer memory.
The Stirrup Bender WG16F needs no pause and stop while processing stirrups of any shapes and adjusting bending angle.
With self-diagnosis, there are two standards exit, through which the electric encoder can be joined.

Technical Data of Stirrup Bender WG16F
