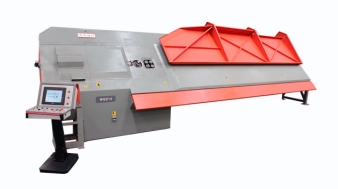

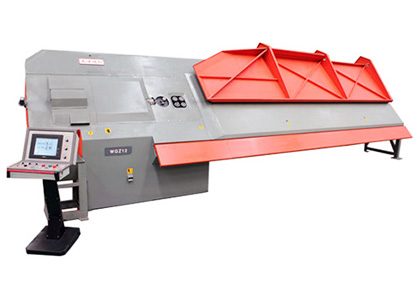

Stirrup Bender WGZ12F

Features of Stirrup Bender WGZ12F

	Precut steel bar 6-13mm is workable;
It’s a multi-functional pre-cut steel bar bending machine, it can automatically process a variety of stirrups within length of 2100mm, it can also be automatically processed within 9m of various plate reinforcement;
	Equipped with the double-shear mechanism and loopback bending function, also equipped with material optimization function, the wire can be cut from the end of a set length, combined with loopback bending function making up to 100% of the use of the entire wire.
Automatic wire feeding system which designed with accurate guide position and counting detection mechanism, it making automatically put the steel from the feed port automatically sent to the host, the automatic wire can be completed within 2 seconds, simple and reliable operation, greatly improving the straight bar steel processing effectiveness;

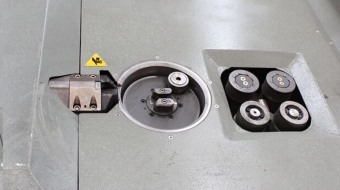

	Four-wheel servo drive loopback bending mechanism design ensures the returning feeding accuracy of ± 1mm; Machine has disc bending mechanism which avoids the stirrups collision and ensures the product pass rate of 100%;

More Detail Stirrup Bender WGZ12F

Stirrup Bender WGZ12F calculate total length by computer to cut before bending, Stirrup Bender WGZ12F have two blade(one at the end of machine, the other one is beside the bending head and two sets wheels, two feeding units which the first one for bending the front end and the other will hold the rebar and let the rear end bent . Stirrup Steel bar Bender WGZ12F no need retreat leave ends

 Technical Data of Stirrup Bender WGZ12F
