Technical Data of Truss Girder Cutting Machine SJLQ300
| Power | 7.5 kw |
| Shearing Method | Mechanical |
| Girder Height | 70-300 mm |
| Line Wire Diameter | 4-12 mm |
| Diagonal Wire Diameter | 3-7 mm |
| Shearing Length | Random |
| Overall Weight | 0.8 t |
Click on the empty space to go back
![]()

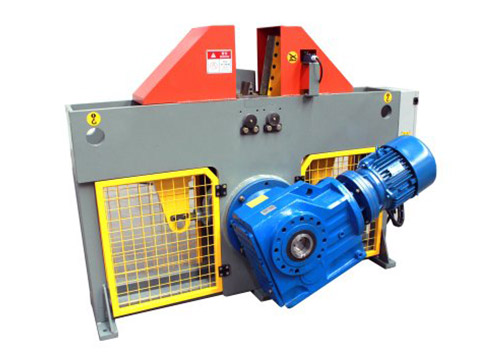

Truss Girder Cutting Machine SJLQ300
The shearing process driven by one motor, good synchronization，easy operation, installed power is only 7.5KW. It is workable with longitudinal wire diameter 4-12mm, Diagonal wire diameter 3-7mm, height 65-300m, the truss girder can be cut at any position
