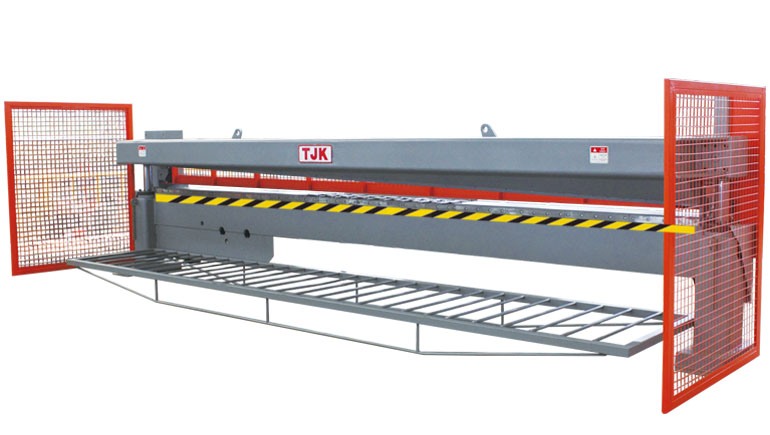

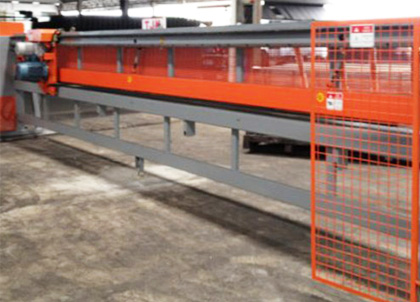

Features of Wire Mesh Cutting Machine MC6000D
 |
Wire mesh cutting machine MC6000D is workable with 6000mm mesh max wire diameter 12mm. |
| Double sided usable cutting blades made of high-quality tool steel. |  |
 |
Mesh clamping device with automatic compensation for different mesh thicknesses. |
Features of Wire Mesh Cutting Machine MC6000D

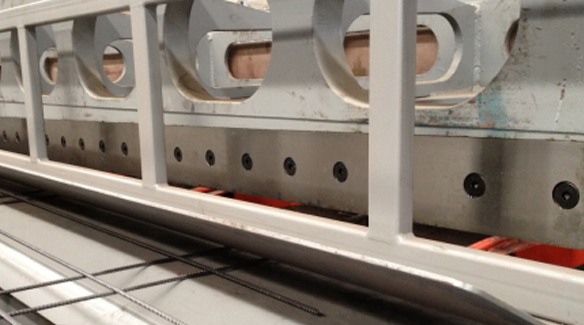

Wire Mesh Cutting Machine MC6000D has double sided usable cutting blades made of high-quality tool steel;
Simple operation by means of manual switch;
Emergency cut-out and return key;
Mesh clamping device with automatic compensation for different mesh thicknesses;
Tie-beam with semi circular rubber which prevents a displacement of the welded wire mesh during the cutting process;
Maintenance-free and long wearing cutting unit guidance;
Wire Mesh Cutting Machine MC3000D/6000D has free-wheel of the cutting unit prevents a displacement of the rods;
Feed by means of back-geared motor and toothed rack with damping system;
Adjustable rate of feeding;
Double return speed;
Wire Mesh Cutting Machine MC6000D has lateral protective side grids and mesh draw hooks;
Mesh support table;
Adjustment of cutting width by means of the potentiometer.
Technical Data of Wire Mesh Cutting Machine MC6000D
| Working width | 6,000 [mm] |
| Max. cutting capacity | 12 mm 50*50mm |
| Max. cutting speed | 20 [m/min] |
| Shear cutting unit | cuts in one direction |
| Cutting motor | 2.2 [KW] |
| Geared motor feeding motor | 1.1 [KW] |
| Geared press motor | 0.55 [KW] |
| Voltage | 415V/50HZ |
| Machine weight | Approx.2,200 [Kg] |
| Length x width x height | 7,250 x 1,650 x 1,750 [mm] |
