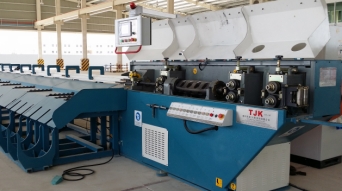

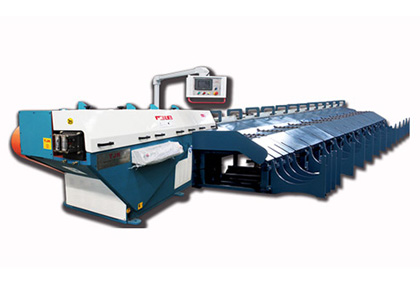

Features of Wire Straightening and Cutting Machine GT5-12Q
 |
Wires already be cut will be automatically aligned, it will save time and effort, advanced storage settings are being used; |
| Buffer feeding system is being used, don’t need to stop while packaging; | |
|
Straightening process and conveying mechanism are controlled by CNC system, straightening speed and conveying speed can be step-less adjusted, little damage on steel surface; high straightening speed and straightness, high production and safety, instant braking; |
| A group of workers can operate two machines which are placed in positive and negative side, overall size small, increased production efficiency; | |
|
Fine made unloading rack, wire length can be read directly from the ruler which can be easily adjusted; |
| Servo motor cutting technology being used, timing belt drive, high accuracy positioning, no noise; workable with wire min length 800mm, stable quality, maintenance-free; | |
Characteristics of Wire Straightening and Cutting Machine GT5-12Q
Wire Straightening and Cutting Machine GT5-12Q (wire straightener) fast in straightening and cutting: Our product could reach the highest straightening and cutting speed of 130m/min, 3-4 times that of domestic similar products.
Automatic Wire Straightening and Cutting Machine GT5-12Q (wire straighteners) Suitable for new 3rd-grade steel: The straightening performance of our products is unique, and suitable for straightening and cutting cold rolled ribbed steel bar and new 3rd-grade steel which is promoted by the government.
Cutting Machine GT5-12Q (wire straightener) intelligent control: We adopt PLC to control. Operate, regulate and remote control, which is easy and reliable.
Technical Data of Automatic Wire Straightening and Cutting Machine GT5-12Q
| Raw material | Smooth and ribbed wires in coil (low carbon) |
| Production capacity | Φ5 – Φ12 [mm] (cold rolled) Φ5 – Φ10 [mm] (hot rolled ribbed) |
| Maximum straightening speed | 130 [m/min] (AC Frequency Convert Control) |
| Cutting length | 800 – 12,000 [mm] |
| Cutting method | Servo motor |
| Length gauge | Manual |
| Linearity of straightening | ≤2 [mm/m] |
| Tolerance of cut-to-length | ≤±1 [mm] |
| Total power | 49.5 [Kw] |
| Overall dimension | 23 × 2.6 × 1.7 [m] (L×W×H) |
