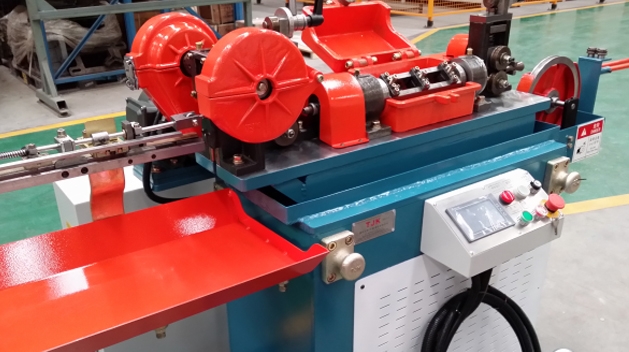

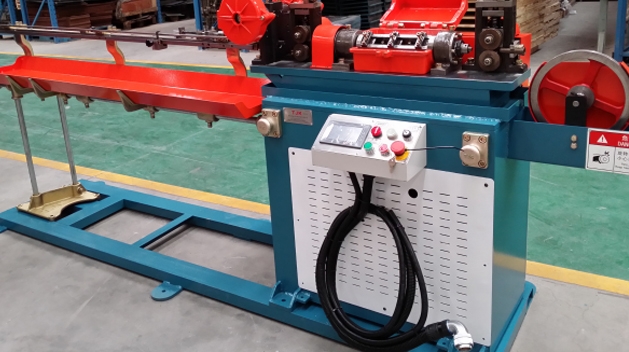

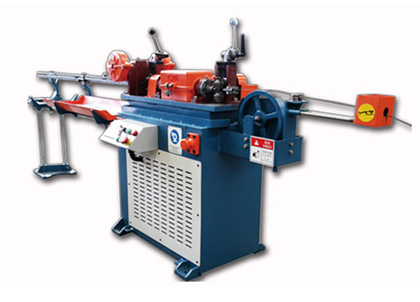

Features of Wire Straightening and Cutting Machine GT1.8-3
 |
Pure electric CNC stirrup bending machine, traction compression volume is digital controlled according to the diameter, bending movements are electric controlled detected, ensures simpler and more stable operation; |
| Duplex bending axis set, matching a variety of molds, workable with stirrups size range 100mm-1380mm ; High-speed non-delay bending action, maximum bending speed 1200°/S; |
 |
 |
Newly designed multi-function bending mechanism workable with large circular arc stirrups, the max curved arc up to R35 |
| Bidirectional 180° bending disc mechanism, avoid the stirrup of the collision, making the pass rate of 100%; |  |
 |
Traction wheel has a non-slip groove to prevent reinforcement in the process of slipping, transmission efficiency; |

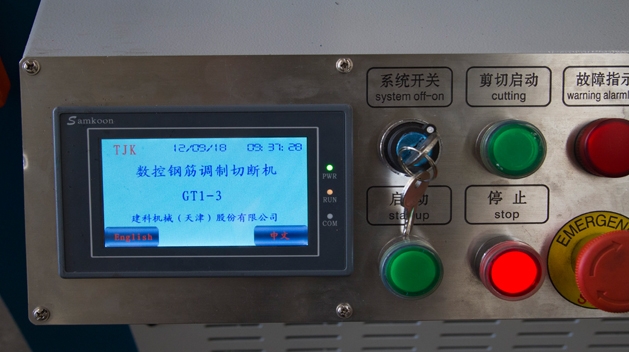

| Electronic control system with 4-wire high-precision touch screen, it can be stable and reliable work within -10~ 65℃. |  |
Characteristics of Wire Straightening and Cutting Machine GT1.8-3
Wire Straightening and Cutting Machine GT1.8-3 fast in straightening and cutting: Our product could reach the highest straightening and cutting speed of 35m/min, 3-4 times that of domestic similar products.
Wire Straightening and Cutting Machine GT1.8-3 Suitable for new 3rd-grade steel: The straightening performance of our products is unique, and suitable for straightening and cutting cold rolled ribbed steel bar and new 3rd-grade steel which is promoted by the government.
automatic Wire Straightening and Cutting Machine GT1.8-3 intelligent control: We adopt PLC to control. Operate, regulate and remote control, which is easy and reliable.
Technical Data of Wire Straightening and Cutting Machine GT1.8-3
| Raw material | smooth wires in coil |
| Production capacity | Φ1.8 – Φ3[mm] |
| Traction Speed | 35 [m/min] |
| Cutting length | 200 – 1,500 [mm] |
| Stocking pocket | 2m |
| Cutting speed | 1,250 nos/min |
| Length gauge | Manual |
| Linearity of straightening | ≤2 [mm/m] |
| Tolerance of cut-to-length | ≤±1 [mm] |
| Feeding and straightening motor | 1.5[Kw] |
| Cutting motor | 0.55[Kw] |
| Overall dimension | 6,000×800×1,200mm (L×W×H) |
