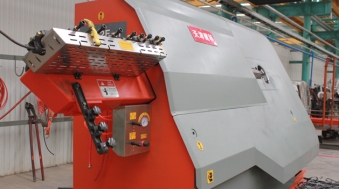

Stirrup Bender WG12E

Features of Stirrup Bender WG12E

	It is designed with a large-scale working panel, easier operating, increase the scope of the stirrup can be machined, max length of stirrup up to 1670mm;
It has patented technology which is center invariable bi-directional bending mechanism, very efficient for two-way bending, double-bit bending axis set, a variety of optional mold for processing small size stirrups;

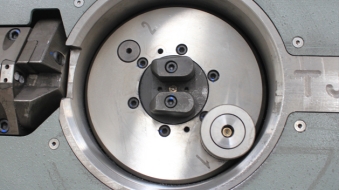

	Machine has disc bending mechanism which avoids the stirrups collision and ensures the product pass rate of 100%;
Traction wheel has a non-slip groove to prevent reinforcement in the process of slipping, transmission efficiency;

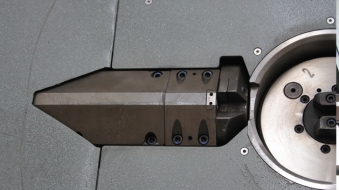

	Fixed cutter can be used on both sides to improve the service life; cutting knife is designed with four available sides, service life increased by 4 times, greatly reducing costs.

More Detail Stirrup Bender WG12E

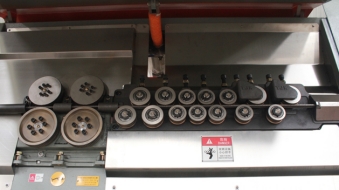

Stirrup Bender WG12E has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted, is integrated with 4 pulling rollers that eliminate the torsion, which is driven by servomotor, thus ensuring a perfect straightening accuracy.

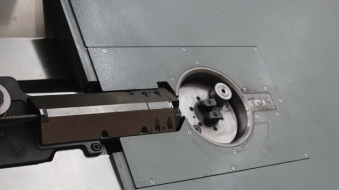

The automated wire bending and cutting unit of Stirrup Bender machine WG12E, driven by servomotor, is equipped with turning and retractile bending pins. After receiving a signal from the computer, the cutting unit starts and cut in the twinkling guaranteed the tolerance of the stirrup.
For this Stirrup Bender WG12E, many electric and pneumatic parts are imported from Japan and German, such as PLC, servomotor and reducer.
A Stirrup Bender WG12B-2 available to the most 30 bends; 500 different stirrups parameter can be stored in the computer memory.
The Stirrup Bender machine WG12E needs no pause and stop while processing stirrups of any shapes and adjusting bending angle.
With self-diagnosis, there are two standards exit, through which the electric encoder can be joined.

Technical Data of Stirrup Bender WG12E
