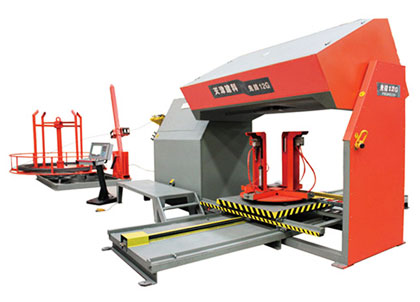

Stirrup Bender WG12G

Features of Stirrup Bender WG12G

	Multifunctional stirrup bender is workable with stirrups length within 1380mm, can it can automatically process with 200mm-800mm spiral stirrups;
Two working modes can be automatically switched, automatic control switch within 30 seconds to complete, without manual adjustment;
	Advanced CNC five-axis linkage design, to ensure that a spiral set of stirrups with high efficiency, high-precision processing; Advanced structural design, can achieve high-speed high-precision continuous bending 50 cycles;

Function of Stirrup Bender WG12G

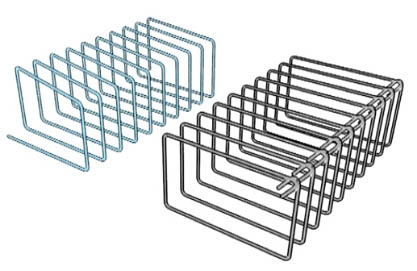

Automatic multifunctional machine to work hot-rolled, cold-rolled or cold-drawn wire rod in coils, to produce a continuous automatically collected stirrup or single stirrup. It is activated through digital servo-motors. In horizontal position downward it produces continuous stirrup, in the position tilted produces stirrups.
Stirrup Bender WG12G has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted, is integrated with 4 pulling rollers that eliminate the torsion, which is driven by servomotor, thus ensuring a perfect straightening accuracy.

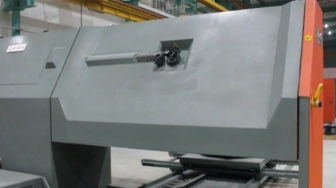

The bending and cutting unit of automatic Stirrup Bending machine WG12G, driven by servomotor, is equipped with turning and retractile bending pins. After receiving a signal from the computer, the cutting unit starts and cut in the twinkling guaranteed the tolerance of the stirrup.
For this Stirrup Bender WG12G, many electric and pneumatic parts are imported from Japan and German, such as PLC, servomotor and reducer.
A Stirrup Bender WG12G available to the most 30 bends; 500 different stirrups parameter can be stored in the computer memory.
The Stirrup Bender WG12G needs no pause and stop while processing stirrups of any shapes and adjusting bending angle.
With self-diagnosis, there are two standards exit, through which the electric encoder can be joined.

Technical Data of Stirrup Bender WG12G
