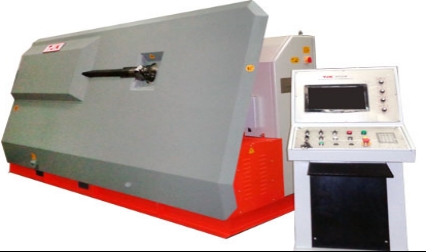

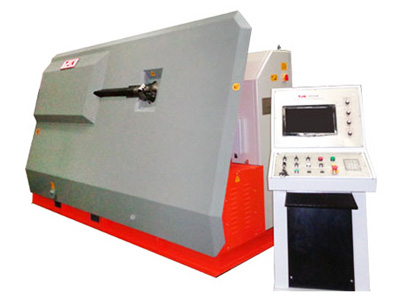

Features of Stirrup Bender WG13B
 |

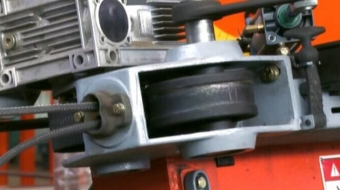

Straightening mechanism has a position sensor which can accurately remember different steel straightening wheel pressure reduction, equipped with CNC memory straightening function which making the replacement of steel very simple and accurate; |
| It has straightening linkage adjustment mechanism which can achieve non-stop fine-tuning straightening; It has automatic wire feeder which making the steel wire to wear only 5 seconds, saving time and effort; |
 |
 |
Large long tube design to meet the processing of long U-shaped bar requirement (export Korean type); Driven by full-closed-loop control servo motor which has high-precision, ensures the accuracy of length of ± 1mm, angle accuracy of ± 1 °; |
Function of Stirrup Bender WG12G
Automatic multifunctional machine to work hot-rolled, cold-rolled or cold-drawn wire rod in coils, to produce a continuous automatically collected stirrup or single stirrup. It is activated through digital servo-motors. In horizontal position downward it produces continuous stirrup, in the position tilted produces stirrups.
Stirrup Bender WG12G has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted, is integrated with 4 pulling rollers that eliminate the torsion, which is driven by servomotor, thus ensuring a perfect straightening accuracy.
The bending and cutting unit of automatic Stirrup Bending machine WG12G, driven by servomotor, is equipped with turning and retractile bending pins. After receiving a signal from the computer, the cutting unit starts and cut in the twinkling guaranteed the tolerance of the stirrup.
For this Stirrup Bender WG12G, many electric and pneumatic parts are imported from Japan and German, such as PLC, servomotor and reducer.
A Stirrup Bender WG12G available to the most 30 bends; 500 different stirrups parameter can be stored in the computer memory.
The Stirrup Bender WG12G needs no pause and stop while processing stirrups of any shapes and adjusting bending angle.
With self-diagnosis, there are two standards exit, through which the electric encoder can be joined.
