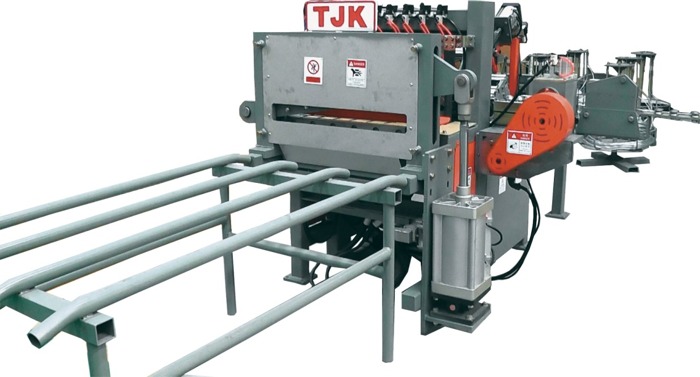

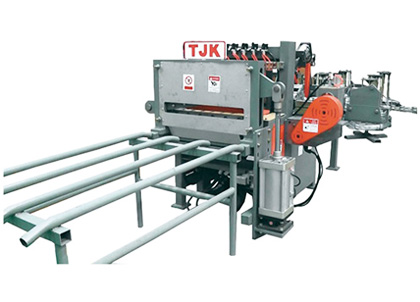

Features of Wire Mesh Welding Machine GWC (P) 600-E
 |
Wire Mesh Welding Machine GWC（P）600-E has advanced technology is introduced from Europe, lots of parts have the patent for the invention, the high efficiency also high endurance and humane designs are safe and reliable. |
| High precision of PLC control, LCD display is easy for operating, have mighty graphics library, it is able to communicate with management software. |  |
 |
Wire Mesh Welding Machine GWC（P）600-E is workable with wire diameter 3-6mm, 40–60 strokes/min, maximum mesh width 600mm. |
| Transformer, electrodes and SCR of welding units are cooled by compulsive water-cooling, the water pressure testing system is mounted to ensure the good condition of operation which greatly lengthens the service life. |  |
 |
The efficiency of the electrode tip is increased as a result of 1# rare earth alloy copper, because of this the cost is saved effectively; High-quality welding, tiny spark. |
| TJK Wire Mesh Welding Machine GWC（P）600-E have been sold more than 500 pcs around the world. |  |
Characteristics of Wire Mesh Welding Machine GWC (P) 600-E
Wire Mesh Welding Machine GWC（P）600-E has advanced technology is introduced from Europe，lots of parts have patent for invention, the high efficiency also high endurance and humane designs are safe and reliable；
High precision of PLC control，LCD display is easy for operating，have mighty graphics library，it is able to communicate with management software；
Wire Mesh Welding Machine GWC（P）600-E is workable with wire diameter 3-6mm, 40–60 strokes/min，maximum mesh width 600mm；
Transformer, electrodes and SCR of welding units are cooled by compulsive water-cooling，water pressure testing system is mounted to ensure the good condition of operation which greatly lengthens the service life；
The efficiency of the electrode tip is increased as a result of 1# rare earth alloy copper, because of this the cost is saved effectively;High-quality welding，tiny spark；
TJK Wire Mesh Welding Machine GWC（P）600-E have been sold more than 500 pcs around the world.
Technical Data of Wire Mesh Welding Machine GWC (P) 600-E
| Working specifications: | |
| Max. mesh width (cross wire length) | 600 [mm] |
| Max. outmost line wire dimension | 500 [mm] |
| Line wire spacing | ≥50 [mm], adjustable |
| Cross wire spacing | ≥30 [mm], steplessly adjustable |
| Line wire diameter | Φ3.0 – Φ6.0 [mm] (off-coil) |
| Cross wire diameter | Φ3.0 – Φ6.0 [mm] (off-coil) |
| Max. welding capacity | Φ6 + Φ6 [mm] |
| Max. welding speed | 40 – 60 [strokes/min] (cross wire no°/min) |
| Air consumption | ≥0.6Mpa |
| Cooling water consumption | ≥0.2Mpa |
| Electronic parts specifications: | |
| Numbers of welding transformer | 1 |
| Numbers of electrode | 6 |
| Power supply voltage | 380 [V] – 60 [Hz] |
| Control voltage | DC24 [V] |
| Total installed power | 1 × 100 [KVA] |
| Short circuit voltage | 4 – 8 [V] |
| Welding current controlling | transistor |
