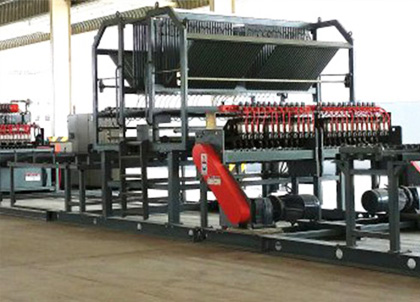

Features of Wire Mesh Welding Machine GWCP 2400/2800/3300JZ-B
 |
Line wires will be fed into welding point automatically by servo motor.While welding, a next batch line wires can be loaded and fed. It makes the production continuous. |
| Welding system is designed for the deformed and plain wire. |  |
 |
Welding transformers are water cooled and a thermostat monitors over-heating. |
| Maximum welding speed 60–90 strokes per minute. |  |
 |
Automatic cross wire feeding which is driven by the servo motor. |
Characteristics of Wire Mesh Welding Machine GWCP 2400/2800/3300JZ-B
Wire Mesh Welding Machine GWCP2400/2800/3300JZ-B has advanced technology is introduced from Europe，lots of parts have patent for invention, the high efficiency also high endurance and humane designs are safe and reliable;
High precision of PLC control，LCD display is easy for operating，have mighty graphics library，it is able to communicate with management software;
Wire Mesh Welding Machine GWCP2400/2800/3300JZ-B is workable with wire diameter 5-12, speed 60-90 strokes/min，maximum mesh width 3300mm;
Transformer, electrodes and SCR of welding units are cooled by compulsive water-cooling，water pressure testing system is mounted to ensure the good condition of operation which greatly lengthens the service life;
The efficiency of the electrode tip is increased as a result of 1# rare earth alloy copper, because of this the cost is saved effectively; High-quality welding，tiny spark;
TJK Wire Mesh Welding Machine GWCP2400/2800/3300JZ-B have been sold more than 500 pcs around the world.
Technical Data of Wire Mesh Welding Machine GWCP 2400/2800/3300JZ-B
| Working specifications: | |
| Material | smooth or ribbed weldable wires |
| Max. mesh width (cross wire length) | 2,400/ 2800/ 3300 [mm] |
| Max. outmost line wire dimension | 2,300 [mm] |
| Max. mesh length (line wire length) | 6,000 [mm] |
| Line wire spacing | ≥100 [mm], multiples of 50 [mm] |
| Cross wire spacing | ≥50 [mm], programmable adjustable |
| Line wire diameter | Φ5 – Φ12 [mm] (off-coil) |
| Cross wire diameter | Φ5 – Φ12 [mm] (pre-cut) |
| Max. welding capacity | Φ12 + Φ12 [mm] |
| Max. welding speed | 60 – 90 [strokes/min] (cross wire no°/min) |
| Numbers of electrode | 24 / 28 /32 |
