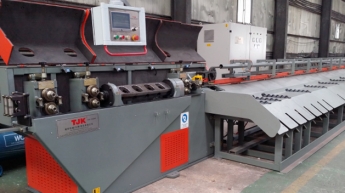

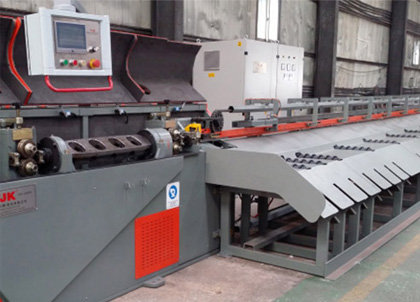

Features of Wire Straightening and Cutting Machine 8-14Q
 |
Wires can be automatically cut to length according to the input data; |

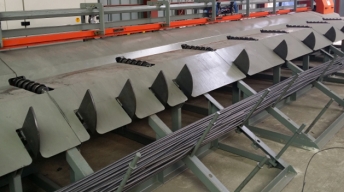

| Wires already be cut will be automatically aligned, it will save time and effort, advanced storage settings are being used; |  |
 |

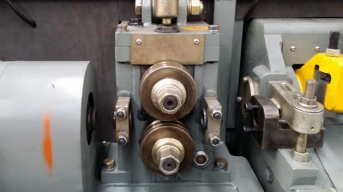

Straightening process and conveying mechanism are controlled by CNC system, straightening speed and conveying speed can be step-less adjusted, little damage on steel surface; high straightening speed and straightness, high production and safety, instant braking; |
| A group of workers can operate two machines which are placed in positive and negative side, overall size small, increased production efficiency; |  |
 |
Servo motor cutting technology being used, timing belt drive, high accuracy positioning, no noise; workable with wire min length 800mm, stable quality, maintenance-free; |
Characteristics of Wire Straightening and Cutting Machine 8-14Q
Wire Straightening and Cutting Machine GT8-14Q (wire cutting machines) fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 130m/min, 3-4 times that of domestic similar products.
Wire Straightening and Cutting Machine GT8-14Q (wire cutting machines) Suitable for new 3rd-grade steel: The straightening performance of our products is unique, and suitable fo straightening and cutting cold rolled ribbed steel bar and new 3rd-grade steel which is promoted by the government.
Cutting Machine GT8-14Q (wire cutting machines) intelligent control: We adopt PLC to control. Operate, regulate and remote control, which is easy and reliable.
Technical Data of Wire Straightening and Cutting Machine 8-14Q
| Raw material | Smooth and ribbed wires in coil (low carbon) |
| Production capacity | Φ8 – Φ14 [mm] (tensile strength≤335Mpa) Φ8 – Φ12 [mm] (tensile strength≤400Mpa) |
| Maximum straightening speed | 130 [m/min] (AC Frequency Convert Control) |
| Cutting length | 800 – 12,000 [mm] |
| Cutting method | Servo motor |
| Length gauge | Manual |
| Linearity of straightening | ≤2 [mm/m] |
| Tolerance of cut-to-length | ≤±1 [mm] |
| Total power | 56.5 [Kw] |
| Total weight | 5,500 [Kg] |
| Overall dimension | 23 × 2.6 × 1.7 [m] (L×W×H) |
