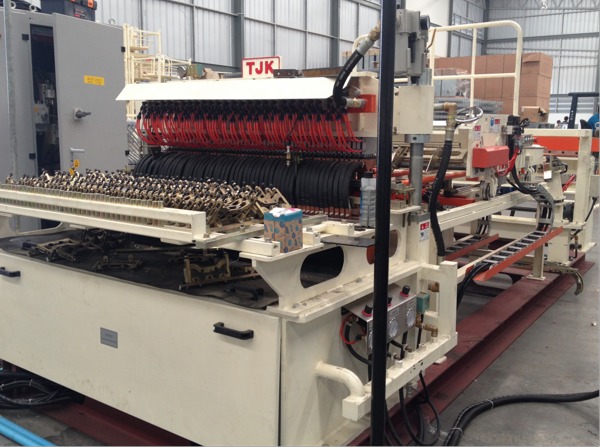

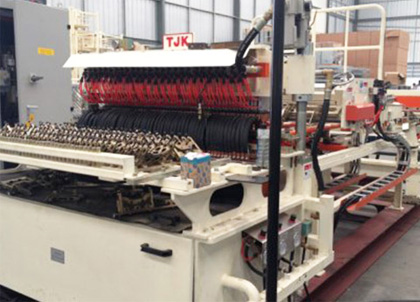

Features of Farming Wire Mesh Welding Machine GWCP1200XM-B
 |
GWCP1200XM is full automatic welding line workable with 1.8-3mm coil wires. |
| Line wire diameter: Φ1.8mm – Φ3mm. May change the line wire diameters without replacing straightening rolls. |  |
 |

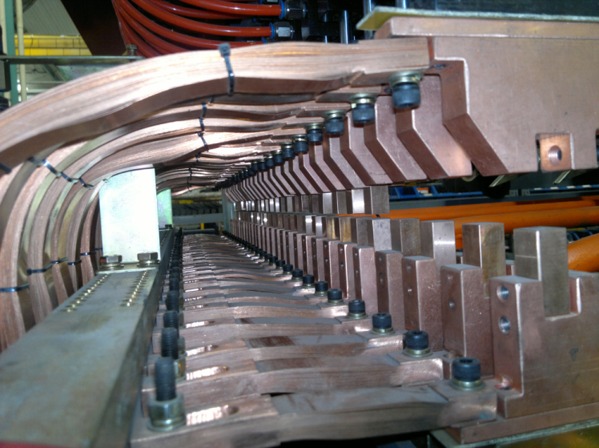

Welding system is designed for cold-rolled wire or cold-drawn uncoated, galvanized wire.24 welding electrodes, 24 air cylinders (welding press), 6 welding transformers. |
| Automatic cross wire feeding unit is driven by the servo motor. |  |
 |

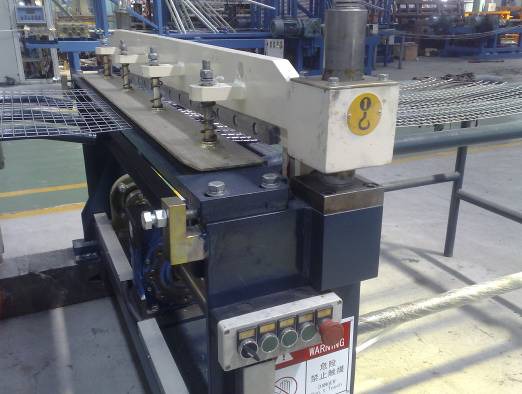

Overhang automatic cutting with two blades equipped on both mesh sides.The blades can be adjustable according to the width of mesh. |
Characteristics of Double Coil Wires Mesh Welding Machine HW-WZD12
Different diameter wires can be mounted on the wire payoffs at the same time, it can automatically choose the wire in need.
For example, 6mm, 8mm,10mm,12mm wires are mounted on the four wire payoffs(line and cross wire payoff), different wires can be automatically changed in the wire automatically change the system, it’s a huge time saving and lower cost.
Both line and cross wires are coils, no need pre-cut, more efficient and safer operation.
Cross wires can be dropped on the face side or the back side of the Cross wire discharging unit, no need to turn over the mesh for saving the space, no need to purchase the mesh turnover unit, it’s a huge time and space saving, and lower cost.
Technical Data of Double Coil Wires Mesh Welding Machine HW-WZD12
| Working specifications: | |
| Max. mesh width (cross wire length) | 2,800 [mm] |
| Max. mesh length (line wire length) | 6 [m] |
| Line wire spacing | 100 [mm], freely adjustable |
| Cross wire spacing | 50 – 400 [mm], The increment in multiples of 50 mm |
| Line wire diameter | Φ5 – Φ12 [mm] (off-coil) |
| Cross wire diameter | Φ5 – Φ12 [mm] (off-coil) |
| Max. welding capacity | Φ12 + Φ12 [mm] |
| Max. welding speed | 80-120 [strokes/min] (cross wire no°/min) |
| Air consumption | ≥0.6Mpa, 3.5m3/min |
| Cooling water consumption | ≥0.2Mpa |
