Features of Wire Mesh Welding Machine GWCZ 2400/2600/2800/3300JZ-B
 |
Line wires will be fed into welding point automatically by servo motor.While welding, a next batch line wires can be loaded and fed. It makes the production continuous. |
| Welding system is designed for the deformed and plain wire. |  |
 |

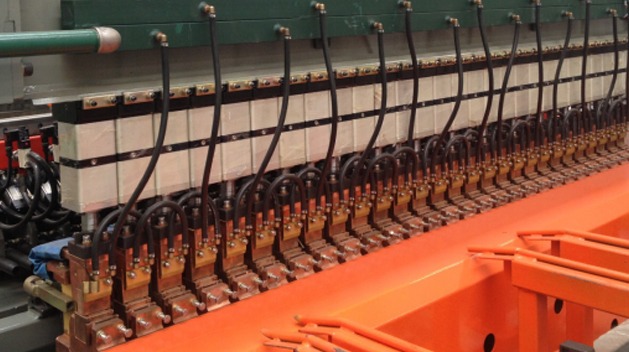

Welding transformers are water cooled and a thermostat monitors over-heating. |
| Maximum welding speed 60–90 strokes per minute. |  |
 |

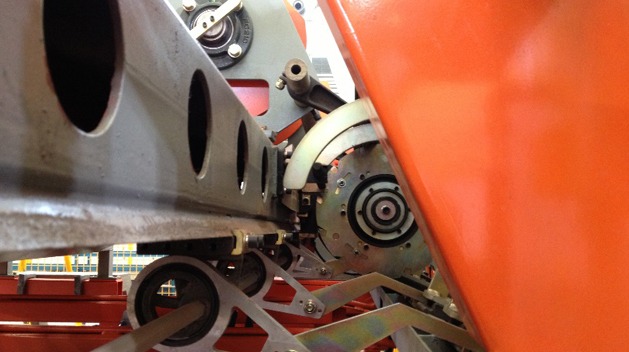

Automatic cross wire feeding which is driven by the servo motor. |
Characteristics of Wire Mesh Welding Machine GWCZ 2400/2600/2800/3300JZ-B
Wire Mesh Welding Machine GWCZ2400/2800/3300JZ-B has advanced technology is introduced from Europe，lots of parts have patent for invention, the high efficiency also high endurance and humane designs are safe and reliable；
High precision of PLC control，LCD display is easy for operating，have mighty graphics library，it is able to communicate with management software；
Wire Mesh Welding Machine GWCZ2400/2800/3300JZ-Bis workable with wire diameter 5-12, speed 60–90 strokes/min，maximum mesh width 3300mm；

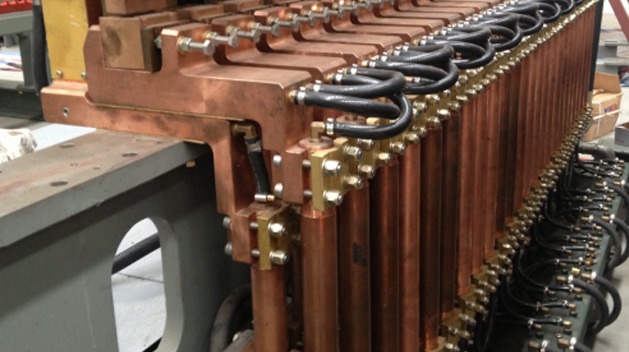

Transformer, electrodes and SCR of welding units are cooled by compulsive water-cooling，water pressure testing system is mounted to ensure the good condition of operation which greatly lengthens the service life；
The efficiency of the electrode tip is increased as a result of 1# rare earth alloy copper, because of this the cost is saved effectively; High-quality welding，tiny spark；
TJK Wire Mesh Welding Machine GWCZ2400/2800/3300JZ-B have been sold more than 500 pcs around the world.
Technical Data of Wire Mesh Welding Machine GWCZ 2400/2600/2800/3300JZ-B
| Working specifications: | |
| Material | pre-straighten, low carbon cold-rolled wire or
cold-drawn uncoated wire |
| Max. mesh width (cross wire length) | 2,400/ 2800/ 3300 [mm] |
| Line wire spacing | ≥100 [mm], adjustable |
| Cross wire spacing | ≥50 [mm], programmable adjustable |
| Line wire diameter | Φ5 – Φ12 [mm] |
| Cross wire diameter | Φ5 – Φ12 [mm] |
| Max. welding capacity | Φ12 + Φ12 [mm] |
| Max. welding speed | 60 – 90 [strokes/min] (cross wire no°/min) |
| Air consumption | ≥0.6Mpa, 1.5m3/min |
| Cooling water consumption | ≥0.2Mpa, 0.5m3/min |
| Numbers of electrode | 24 / 28 /32 |
| Power supply voltage | 380 [V] – 50 [Hz] |
