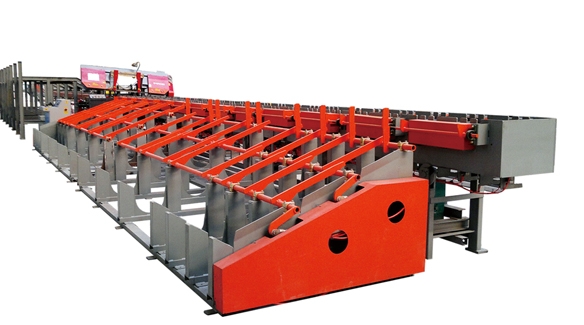

Features of Rebar Saw Cutting Line GJW150C (150t 600mm)
 |
Hot rolling wires will be saw sheared, transported, stored and processed by the machine, the whole process is controlled by the computer, it’s mainly used for construction projects of tunnels, bridges, railways and rebar threading industry. |
| It has a double column structure ensures fast sawing, sawing gap is narrow; | |
|
Available sawing width 600mm, high production; |
| V-belt drive no need lubrication, low noise; | |
|
Unilateral large platform storage rack; |
| Advanced servo control system ensures high sawing accuracy; | |
|
Max rebar sawing diameter 50mm; |
| It can be used with threading equipment. | |
Characteristics of Rebar Saw Cutting Line GJW150C
Rebar Saw Cutting Line GJW150C has advanced technology is introduced from Europe，the high efficiency also high endurance and humane designs are safe and reliable，many units have patents for invention;
High precision of PLC control，designed with high efficiency and high durability;
Rebar Shearing Line GJW150C: Maximum diameter of the wire is 50mm;
The cutter is made of special materials which prolong the life of the machine and increase the efficiency, the workers’ safety is ensured by the covering of the machine;
TJK Rebar Saw Cutting Line GJW150C have been sold more than 300 pcs around the world.
Technical Data of Rebar Saw Cutting Line GJW150C
| Conveying speed | 60 [m/min] | ||||||
| Band saw speed | 60 [m/min] | ||||||
| Band saw availability width | 600 [mm] | ||||||
| Cutting length | 800 – 12,000 [mm] | ||||||
| Cutting tolerance | ± 2 [mm] | ||||||
| Collecting pocket no° | 4 | ||||||
| Load capacity of ladder feeder | 3,500 [kg] | ||||||
| Conveyor load capacity | 800 [kg] | ||||||
| Air operational pressure | ≥ 0.6 [Mpa] | ||||||
| Power supply voltage | 380 [V] – 50[Hz] | ||||||
| Installed power | 26 [KW] | ||||||
| Rated cutting capacity | |||||||
| Bars diameter | 16 | 20 | 25 | 32 | 36 | 45 | 50 |
| Cutting bars no° | 30 | 26 | 21 | 15 | 14 | 12 | 11 |

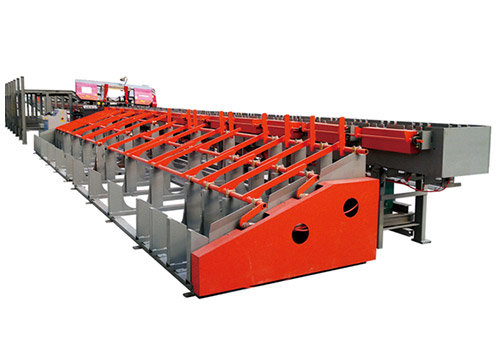

Structures of Rebar Saw Cutting Line GJW150C
Rebar band saw cutting line guarantees high flexible, output, long service life, ease of operation and economic work procedures.
