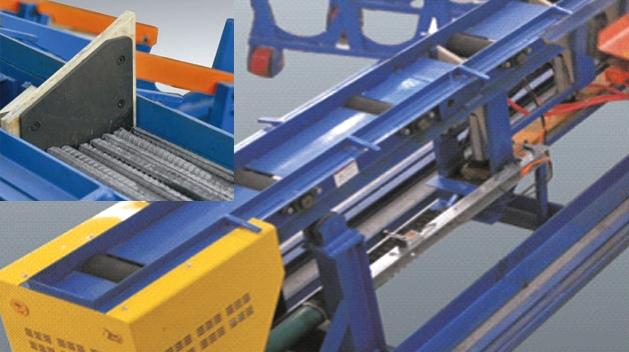

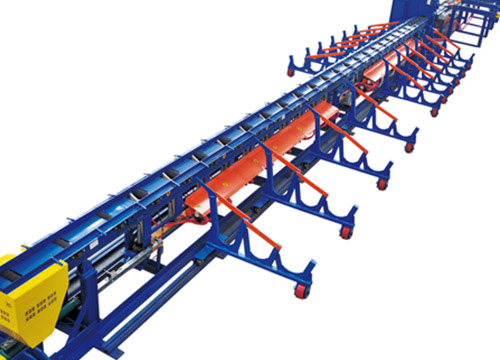

Features of Rebar Shearing Line XQ120 (12m)
 |
It’s workable with hot rolling rebar level Ⅰ, Ⅱ, Ⅲ, Ⅳ, rebar will be cut，transported，storage and processed automatically with the high quality，the whole process is controlled by the computer. It’s full satisfied requirement by rebar processing and transportation station, national nuclear construction, liquefied natural gas project, rail way and highway construction. |
| Mechanical multi-stage gear and flywheel structure are being used, different sizes of rebar can be fast changed; | |
 |
Equipment structure is compact, fewer area requirement; |
| Unilateral Chain track rebar discharge rack is more convenient and easily maintain; | |
|
Shearing blade width 210mm with tilt structure which ensures high service life; |
| Max available shearing diameter 50mm; | |
Characteristics of Rebar Shearing Line XQ120
Rebar Shear Line machine XQ120 has advanced technology is introduced from Europe，the high efficiency also high endurance and humane designs are safe and reliable，many units have patents for invention;
High precision of PLC control，designed with high efficiency and high durability;
Rebar Shearing Line XQ120: Maximum diameter of the wire is 50mm;
The cutter is made of special materials which prolong the life of the machine and increase the efficiency, the workers’ safety is ensured by the covering of the machine;
TJK Rebar Shearing Line XQ120 have been sold more than 300 pcs around the world.
Technical Data of Rebar Shearing Line XQ120
| Model | XQ120 | |||||||||||
| Rated cutting capacity | 1,200 [Kn] | |||||||||||
| Conveying speed | 54 [m/min] | |||||||||||
| Cutting speed | 20 [times/min] | |||||||||||
| Cutting length | 750 – 12,000 [mm] | |||||||||||
| Cutting length tolerance | ±1 [mm] | |||||||||||
| Blade availability width | 200 [mm] | |||||||||||
| Min. length of remaining waste bars | 100 [mm] | |||||||||||
| Collecting pocket no° | 3 | |||||||||||
| Installed power (cutting) | 7.55 [KW] | |||||||||||
| Dimension (L×W×H) | 25,800×3,200×1750 [mm] | |||||||||||
| Rebar diameter (max tensile strength 750Mpa) |
10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 32 | 36 | 38 | 40 |
| Rebar cut no° | 10 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 1 | 1 | 1 |
