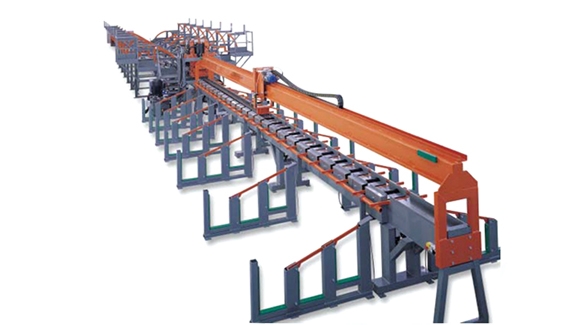

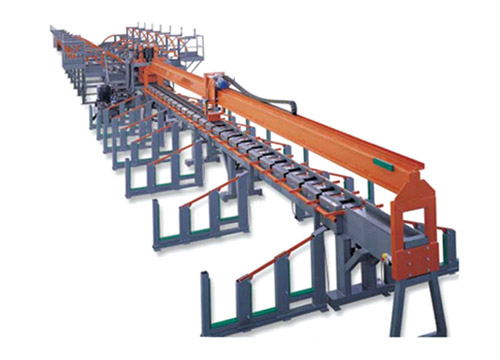

Features of Rebar Shearing Line GJW1240 (120t 400mm)
 |
It’s workable with hot rolling rebar level Ⅰ, Ⅱ, Ⅲ, Ⅳ, rebar will be cut, transport, storage automatically with high quality, the whole process is controlled by the computer. It’s full satisfied requirement by rebar processing and transportation station, national nuclear construction, liquefied natural gas project, rail way and highway construction. |
| Hydraulic shearing system is being used, waste can be automatically collected; | |
|
600mm width oblique cutting blade being used which is more efficiency; |
| V-belt drive no need lubrication, low noise; | |
|
Bilateral three-ladder storage rack which will meet the requirement of multi-size steel placement; |
| Advanced servo control system ensures high shearing accuracy; | |
|
Available diameter up to 50mm. |
Characteristics of Rebar Shearing Line GJW1240
Rebar Shear machine Line GJW1240 has advanced technology is introduced from Europe，the high efficiency also high endurance and humane designs are safe and reliable，many units have patents for invention;
High precision of PLC control，designed with high efficiency and high durability;
Rebar Shearing Line GJW1240: Maximum diameter of the wire is 50mm;
The cutter is made of special materials which prolong the life of the machine and increase the efficiency, the workers’ safety is ensured by the covering of the machine;
TJK Rebar Shear machine Line GJW1240 have been sold more than 300 pcs around the world.
Technical Data of Rebar Shearing Line GJW1240
| Conveying speed | 90 [m/min] | |||||||||||
| Cutting speed | 12 [cycles/min] | |||||||||||
| Cutting tolerance | ± 1 [mm] | |||||||||||
| Cutting length | 800 – 12,000 [mm] | |||||||||||
| Blade availability width | 400 [mm] | |||||||||||
| Collecting pocket no° | 3 | |||||||||||
| Load capacity of ladder feeder | 2,000 [kg] per level | |||||||||||
| Conveyor load capacity | 500 [kg] | |||||||||||
| Air operational pressure | ≥ 0.6 [Mpa] | |||||||||||
| Power supply voltage | 415 [V] – 50[Hz] – 3[Phase] | |||||||||||
| Installed power | 35 [KW] | |||||||||||
| Rated cutting capacity | ||||||||||||
| Bars diameter | 10 | 12 | 16 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | 45 | 50 |
| Cutting bars no° (HRB335) | 45 | 35 | 22 | 18 | 16 | 13 | 12 | 10 | 9 | 5 | 3 | 2 |
| Cutting bars no° (HRB400) | 37 | 30 | 18 | 15 | 14 | 10 | 9 | 7 | 6 | 3 | 2 | 1 |
| Cutting bars no° (HRB500) | 35 | 25 | 14 | 12 | 11 | 8 | 7 | 4 | 3 | 2 | 2 | 1 |
