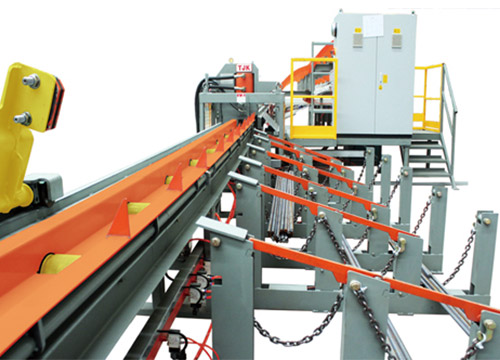

Features of Rebar Shearing Line GJW0816 (80t 160mm)
 |

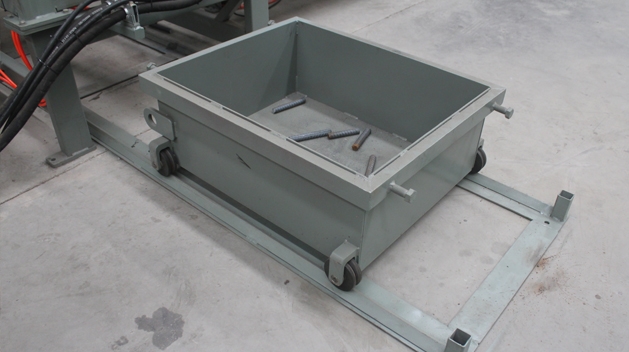

Hydraulic shearing system in use, it can automatically collect the waste; |

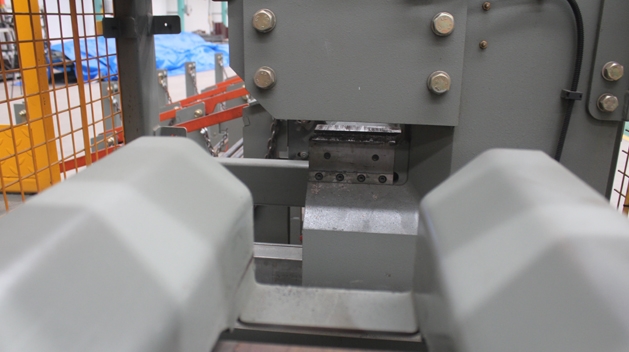

| 160mm oblique type blade in use; |  |
 |

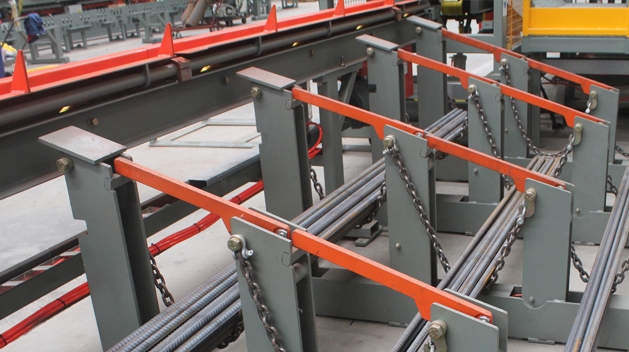

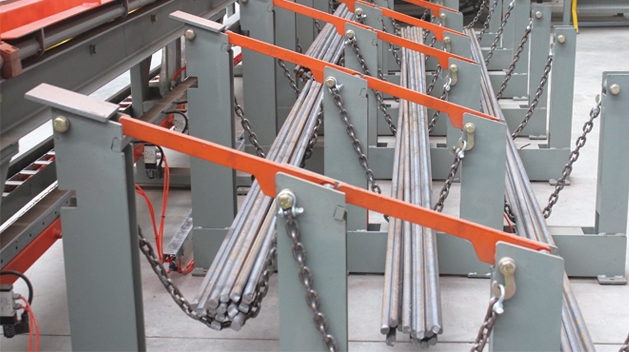

Single-side three-ladder storage rack configuration, unilateral roll material and receipt, small footprint; |
| Automatic length gauge system in use, compact structure, easy maintenance; |  |
 |
Maximum bar diameter ∅50; |
| Special design can be done due to customer requirements, bilateral re-material and receipt can be done. |  |
Characteristic of Rebar Shearing Line GJW0816
Rebar Shear machine line GJW0816 has advanced technology is introduced from Europe，the high efficiency also high endurance and humane designs are safe and reliable，many units have patents for invention；
High precision of PLC control，designed with high efficiency and high durability；
Rebar Shearing Line GJW0816: Maximum diameter of the wire is 50mm；
The cutter is made of special materials which prolong the life of the machine and increase the efficiency, the workers’ safety is ensured by the covering of the machine；
TJK Rebar Shearing Line GJW0816 have been sold more than 300 pcs around the world.
Technical Data of Rebar Shearing Line GJW0816
| Conveying speed | 60 [m/min] | ||||||||||
| Cutting speed | 16 [cycles/min] | ||||||||||
| Cutting tolerance | ± 1 [mm] | ||||||||||
| Cutting length | 800 – 12,000 [mm] | ||||||||||
| Blade availability width | 160 [mm] | ||||||||||
| Collecting pocket no° | 3 | ||||||||||
| Load capacity of ladder feeder | 2,000 [kg] per level | ||||||||||
| Conveyor load capacity | 500 [kg] | ||||||||||
| Air operational pressure | ≥ 0.6 [Mpa] | ||||||||||
| Power supply voltage | 415 [V] – 50[Hz] – 3[Phase] | ||||||||||
| Installed power | 17 [KW] | ||||||||||
| Rated cutting capacity | |||||||||||
| Bars diameter | 10 | 12 | 16 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | 50 |
| Cutting bars no° (HRB335) | 13 | 11 | 9 | 7 | 6 | 4 | 4 | 4 | 3 | 1 | 1 |
| Cutting bars no° (HRB400) | 12 | 11 | 9 | 7 | 6 | 4 | 4 | 3 | 2 | 1 | 1 |
| Cutting bars no° (HRB500) | 11 | 10 | 9 | 6 | 5 | 4 | 3 | 3 | 2 | 1 | — |
STRUCTURE & CHARACTERS
Rebar shear line guarantees high flexible, output, long service life, ease of operation and economic work procedures.
